5000kgs Dual Chamber Mushroom Vacuum Cooling Machine

Short Description:


  • Model: HXV-10P
  • Processing weight: 5000kgs/batch
  • Precooling time: 15~30mins, subject to products
  • Internal chamber size: W2.2xD6.5xH1.9m
  • Material: carbon steel
  • Refrigerant: R404A, R507, R449A, etc
  • Feature: dual chamber, one running, one loading/unloading
  • Applicable products: mushroom, vegetable, flower, fruit, turf, compost
  • Operation: touch screen, set up target temperature
  • Product Detail

    Product Tags

    Intruduction

    Details description

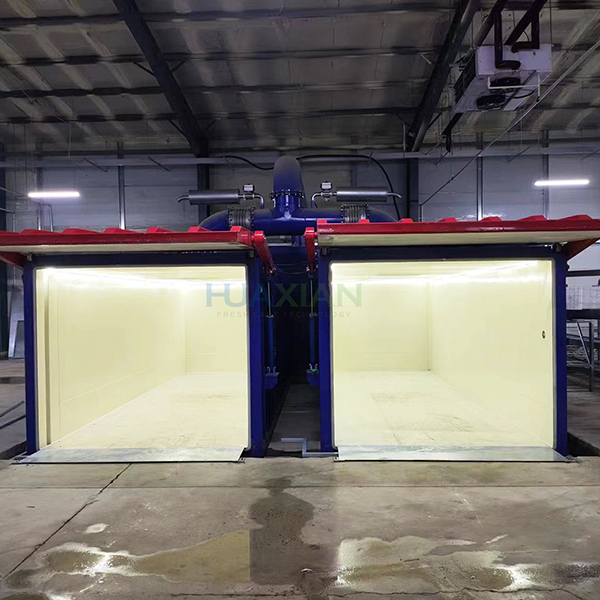

    5000-1L

    Fresh mushrooms often have a very short shelf life. Generally, fresh mushrooms can only be stored for two or three days, and can only be stored in a fresh-keeping warehouse for eight or nine days.

    After picking, mushrooms need to quickly remove the "breathing heat". Vacuum precooling technology is based on the phenomenon that "as the pressure decreases, water begins to boil and evaporate at low temperatures" to achieve rapid cooling. After the pressure in the vacuum precooler drops to a certain level, the water begins to boil at 2°C, and the latent heat of the mushrooms is taken away during the boiling process, prompting the mushrooms to completely drop to 1°C or 2°C from the surface to the inner layer within 20-30 minutes. At this time, the mushrooms are in a dormant state, with no water and sterility on the surface, and the temperature drops to about 3 degrees, the fresh-keeping temperature. Then store them in the fresh-keeping warehouse in time to achieve the purpose of long-term storage. After the mushrooms are picked, the cell life is threatened and some harmful gases are produced for self-protection, and the harmful gases are extracted through the vacuum system.

    The vacuum precooling method greatly extends the shelf life of the product. Compared with traditional cooling technology, vacuum precooling is more efficient and energy-saving. The advantage of vacuum precooling is that it is fast, and the fluffy structure of the mushrooms themselves makes it easier to achieve consistent pressure inside and outside the mushrooms;

    Advantages

    Details description

    1. Rapidly achieve internal cooling within 30 minutes after picking.
    2. Stop breathing heat and stop growing and aging.
    3. Return gas for sterilization after vacuuming
    4. Turn on the evaporation function to evaporate the moisture on the surface of the mushrooms and prevent bacteria from surviving.
    5. Vacuum pre-cooling naturally forms wounds and shrinks pores to achieve the function of locking water. Keep the mushrooms fresh and tender.
    6. Transfer to the cold storage room and store them at a temperature below 6 degrees.

    Huaxian Models

    Details description

    No.

    Model

    Pallet

    Process Capacity/Cycle

    Vacuum Chamber Size

    Power

    Cooling Style

    Voltage

    1

    HXV-1P

    1

    500~600kgs

    1.4*1.5*2.2m

    20kw

    Air

    380V~600V/3P

    2

    HXV-2P

    2

    1000~1200kgs

    1.4*2.6*2.2m

    32kw

    Air/Evaporative

    380V~600V/3P

    3

    HXV-3P

    3

    1500~1800kgs

    1.4*3.9*2.2m

    48kw

    Air/Evaporative

    380V~600V/3P

    4

    HXV-4P

    4

    2000~2500kgs

    1.4*5.2*2.2m

    56kw

    Air/Evaporative

    380V~600V/3P

    5

    HXV-6P

    6

    3000~3500kgs

    1.4*7.4*2.2m

    83kw

    Air/Evaporative

    380V~600V/3P

    6

    HXV-8P

    8

    4000~4500kgs

    1.4*9.8*2.2m

    106kw

    Air/Evaporative

    380V~600V/3P

    7

    HXV-10P

    10

    5000~5500kgs

    2.5*6.5*2.2m

    133kw

    Air/Evaporative

    380V~600V/3P

    8

    HXV-12P

    12

    6000~6500kgs

    2.5*7.4*2.2m

    200kw

    Air/Evaporative

    380V~600V/3P

    Product Pictures

    Details description

    5000-1L

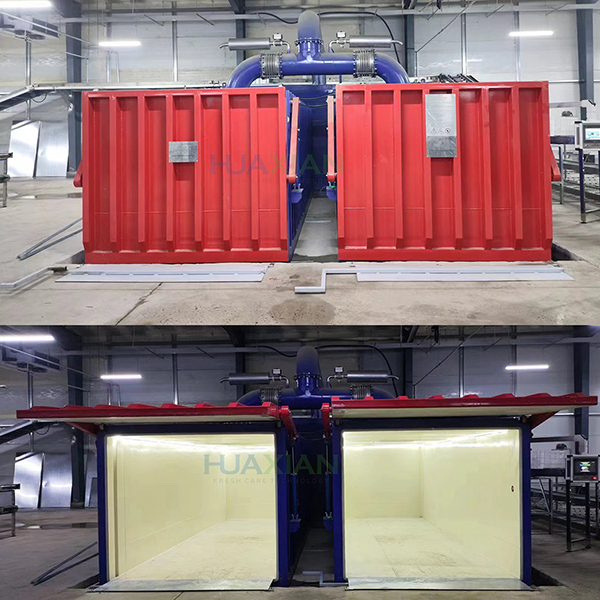

    未标题-2

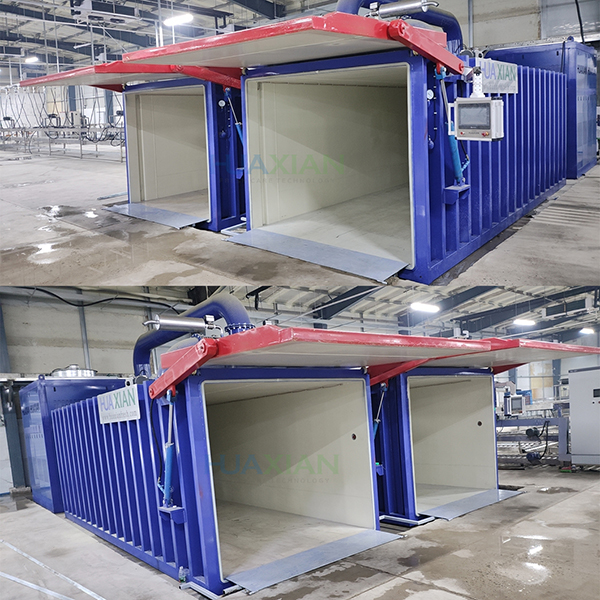

    未标题-3

    Customer's Usage Case

    Details description

    a

    Applicable Products

    Details description

    Huaxian Vacuum Cooler is with good performance for below products:
    Leaf Vegetable + Mushroom + Fresh Cut Flower + Berries

    b

    Certificate

    Details description

    c

    FAQ

    Details description

    1. What’s advantage of dual chamber?

    Customers who need to process mushrooms in large quantities will choose a dual chamber. One chamber is for running, the other one is for loading/unloading pallets. The dual chamber reduces the waiting time between cooler running and loading and unloading of mushrooms.

    2. What is the water loss rate of mushroom during vacuum precooling?

    Around 3% water loss.

    3. Q: Will the product be frostbitten during rapid cooling?

    A: The cooler is equipped with frostbite prevention device to prevent frostbite.

    4. Q: How to install it?

    A: The buyer can hire a local company, and our company will provide remote assistance, guidance and training for local installation personnel. Or we can send professional technician to install it.

    5. Q: How to transport?

    A: Generally, double chamber model can be shipped by a flat rack container.
