30 Ton Split Type Ice Flake Making Machine

Short Description:

Ice output: 30000kgs/24hrs

Water feeding type: fresh water

Ice flakes: 1.5~2.2mm thickness

Compressor: Germany brand

Cooling way: evaporative cooling

Power supply: 220V~600V, 50/60Hz, 3Phase

Ice storage room: L7000xW5000xH3000mm (optional)

Type: split type

Email us Whatsapp

WeChat

E-mail: sales@huaxianfresh.com nicowork@foxmail.com
Tel: +8615920633487(Whatsapp/Wachat)
Office: +86(769)81881339

Product Detail

Product Tags

Intruduction

Details description

Split type ice machines are generally used in poorly ventilated indoor environments. The ice making section is placed indoors, and the heat exchange unit(evaporative condenser) is placed outdoors.

Split type saves space, occupies a small area, and is suitable for workshops with small usage areas.

The ice it produces is a dry and loose white thin sheet with a thickness of 1.5-2.2mm and a diameter of 12-45mm. Ice sheets have a large contact area, are dry and not prone to clumping, quickly cool, mix thoroughly, and have no sharp edges, which will not puncture frozen objects. The ice maker has excellent refrigeration performance, with the characteristics of large refrigeration capacity and rapid ice making. It is widely used in fields such as catering supermarkets, fishery preservati

Advantages

Details description

1. Direct low-temperature continuous ice formation, low ice temperature, high efficiency;
2. Optimize the design of the refrigeration system, ensuring stable operation and low failure rate;
3. Using environmentally friendly refrigerants, environmentally friendly, efficient and energy-saving;
4. The product specification series is complete, meeting different application fields;
5. The ice flakes produced have good undercooling, dryness, uniform thickness, and sufficient yield;
6. Easy to operate, fully automatic control, automatic shutdown when ice is full, achieving unmanned operation;

Huaxian Models

Details description

NO.	Model	Productivity/24H	Compressor model	Cooling Capacity	Cooling method	Bin Capacity	Total Power
1	HXFI-0.5T	0.5T	COPELAND	2350Kcal/h	Air	0.3T	2.68KW
2	HXFI-0.8T	0.8T	COPELAND	3760Kcal/h	Air	0.5T	3.5kw
3	HXFI-1.0T	1.0T	COPELAND	4700Kcal/h	Air	0.6T	4.4kw
5	HXFI-1.5T	1.5T	COPELAND	7100Kcal/h	Air	0.8T	6.2kw
6	HXFI-2.0T	2.0T	COPELAND	9400Kcal/h	Air	1.2T	7.9kw
7	HXFI-2.5T	2.5T	COPELAND	11800Kcal/h	Air	1.3T	10.0KW
8	HXFI-3.0T	3.0T	BIT ZER	14100Kcal/h	Air/Water	1.5T	11.0kw
9	HXFI-5.0T	5.0T	BIT ZER	23500Kcal/h	Water	2.5T	17.5kw
10	HXFI-8.0T	8.0T	BIT ZER	38000Kcal/h	Water	4.0T	25.0kw
11	HXFI-10T	10T	BIT ZER	47000kcal/h	Water	5.0T	31.0kw
12	HXFI-12T	12T	HANBELL	55000kcal/h	Water	6.0T	38.0kw
13	HXFI-15T	15T	HANBELL	71000kcal/h	Water	7.5T	48.0kw
14	HXFI-20T	20T	HANBELL	94000kcal/h	Water	10.0T	56.0kw
15	HXFI-25T	25T	HANBELL	118000kcal/h	Water	12.5T	70.0kw
16	HXFI-30T	30T	HANBELL	141000kcal/h	Water	15T	80.0kw
17	HXFI-40T	40T	HANBELL	234000kcal/h	Water	20T	132.0kw
18	HXFI-50T	50T	HANBELL	298000kcal/h	water	25T	150.0kw

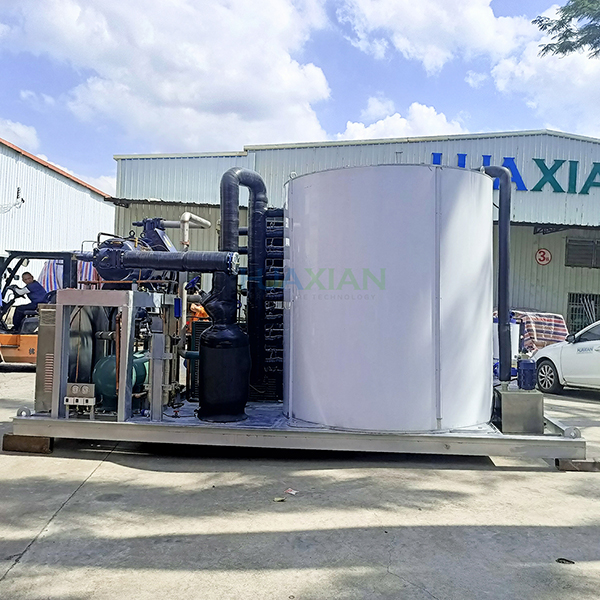

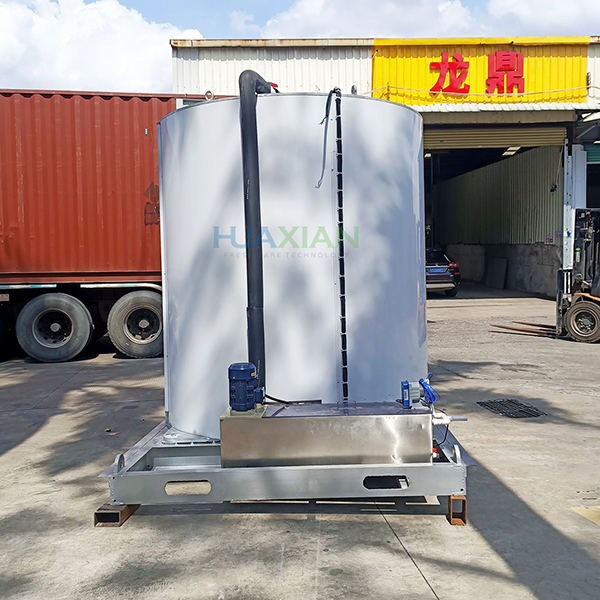

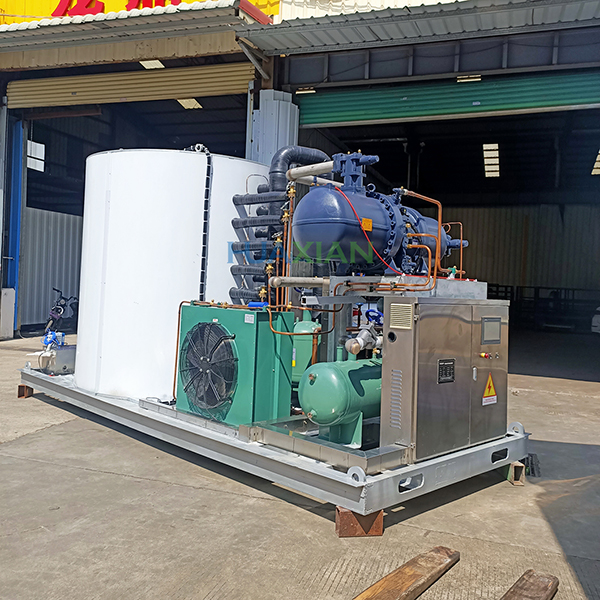

Product PictureProduct Pictures- Flake Ice Machine

Details description

Usage Case

Details description

Applicable Products

Details description

Huaxian flake ice machine is widely used in supermarket, meat processing, aquatic product processing, poultry slaughtering,ocean-going fishing to keep meat, poultry, fish, shellfish, seafood fresh.
